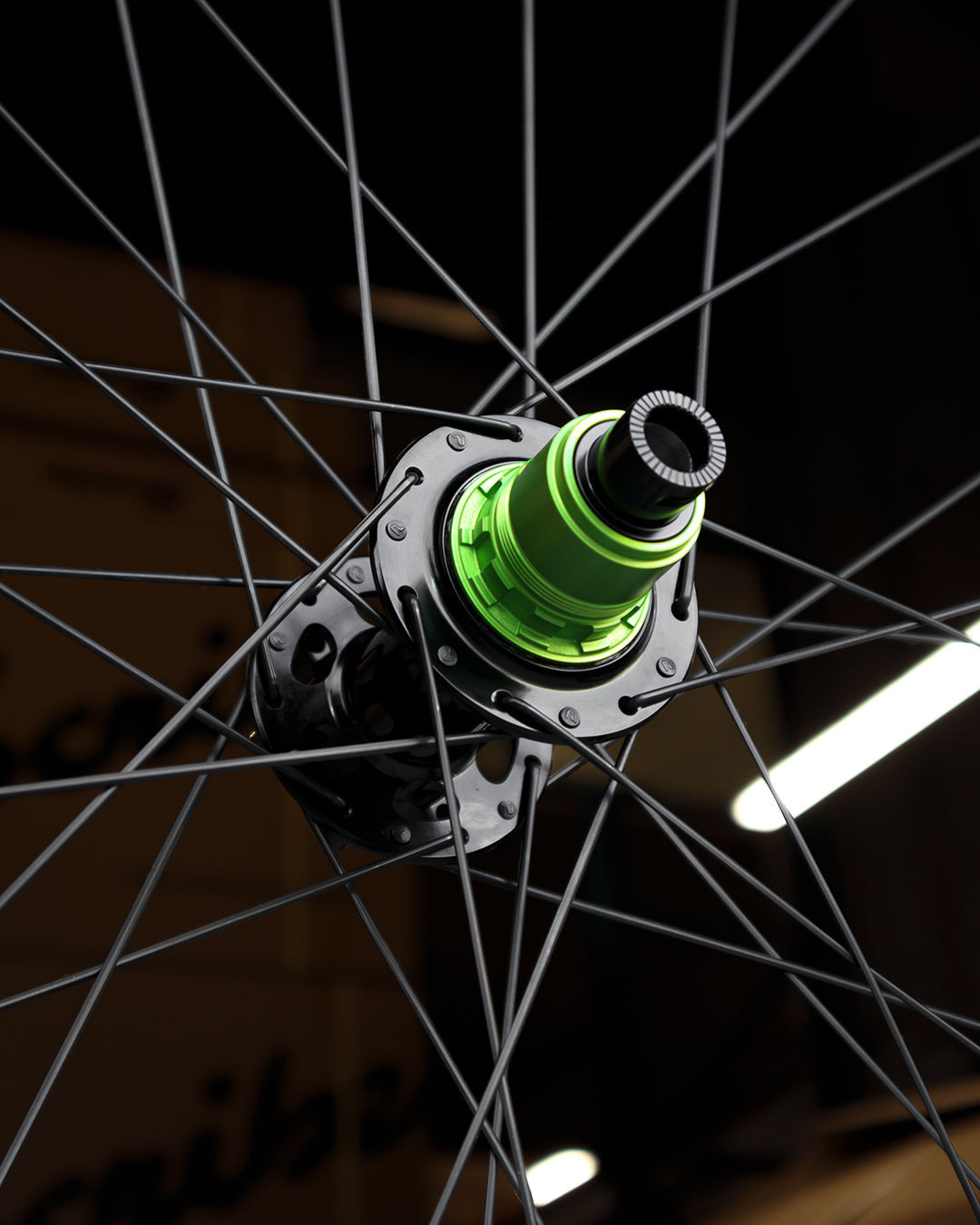

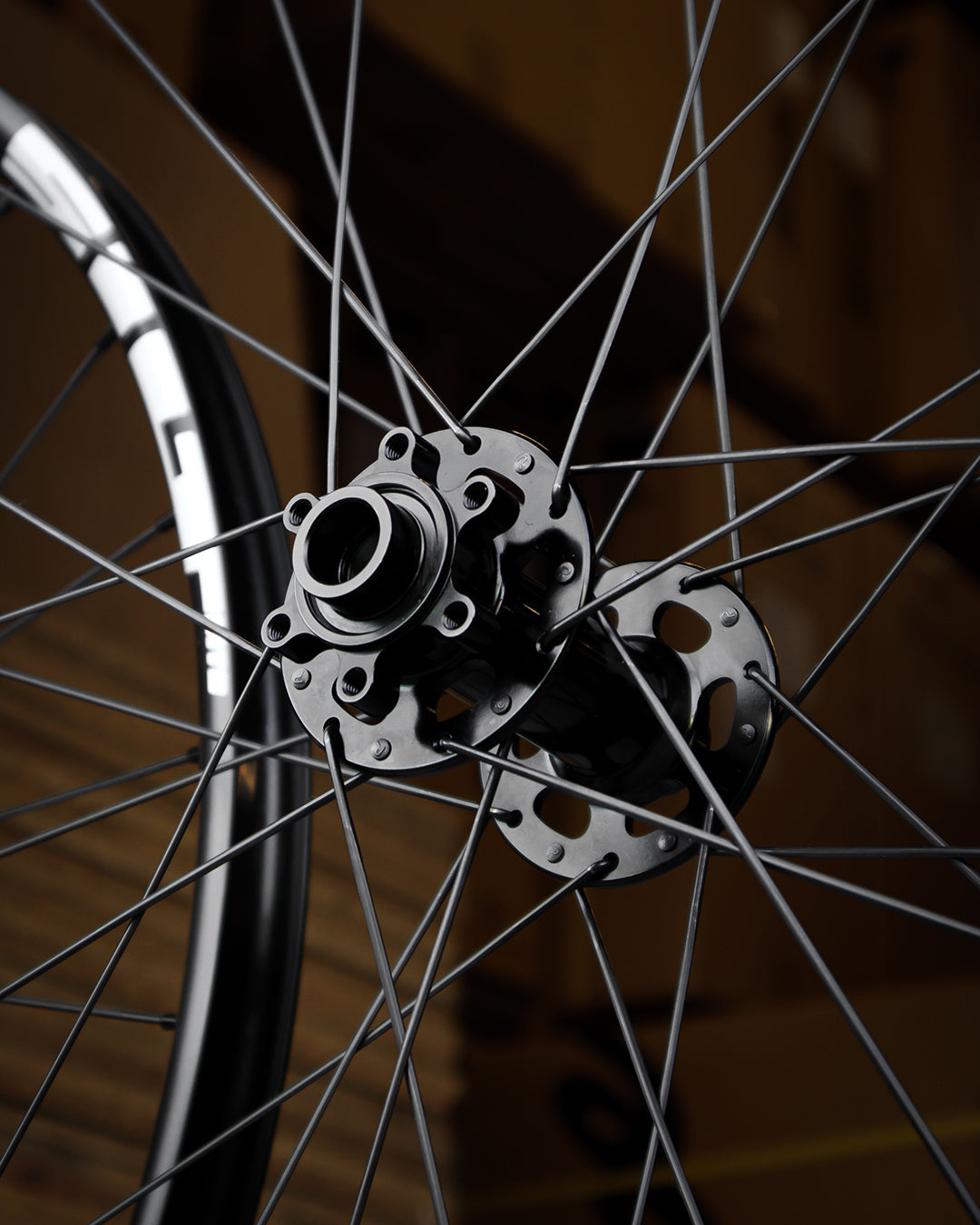

HUBS
Unique, high-speed Ratchet Drive System, Exclusive to SILT
Available in Boost: Front 110x15mm / Rear148x12mm
or standard: 100x15mm / Rear: 142x12mm
6-Bolt rotor fitting
J-Bend Hub

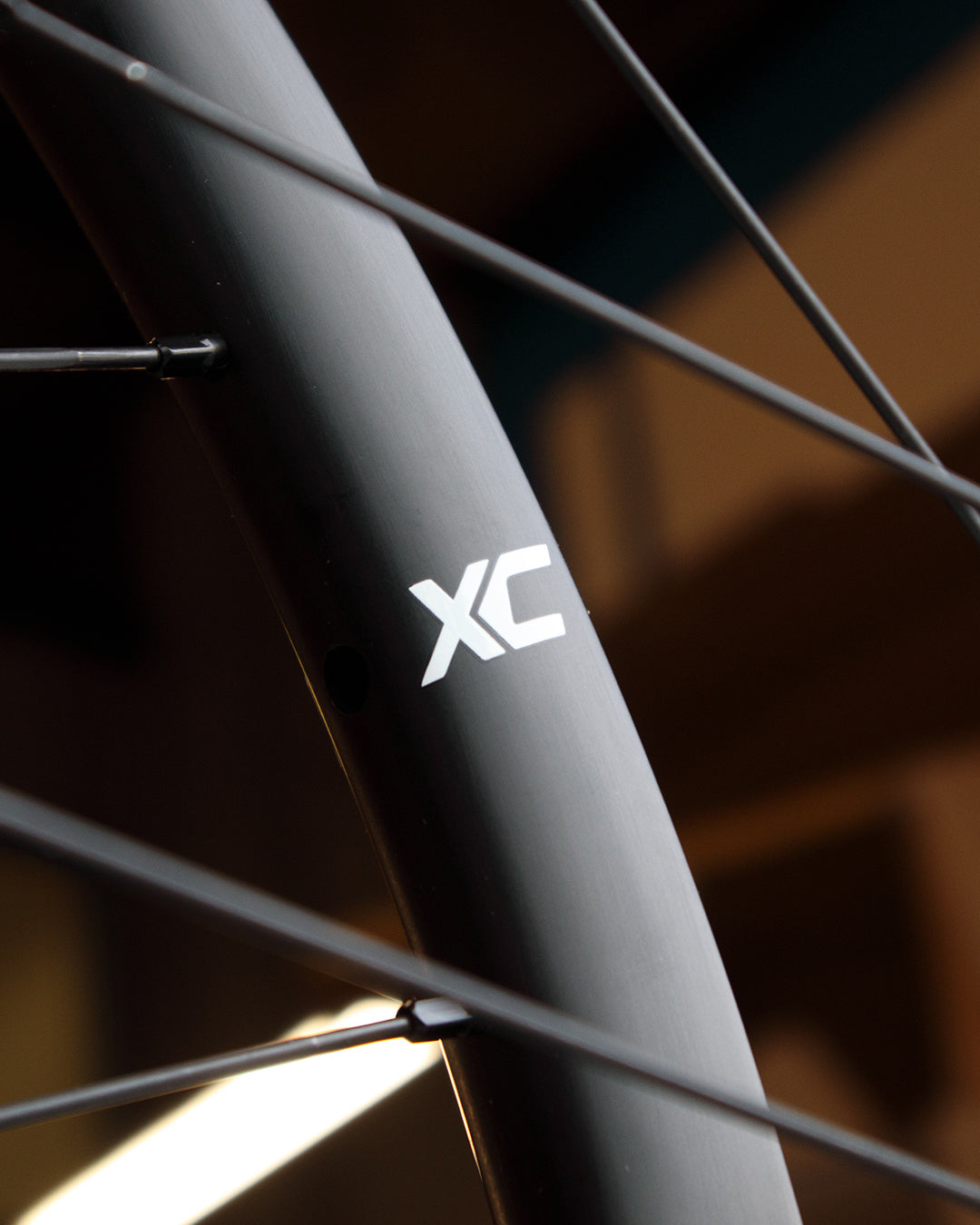

RIMS
Reinforced sidewalls & spoke holes for increased strength
Bead lock design for secure tyre binding, even at low pressures.
Specification: 27mm internal & 32mm external widths.
28-hole Front & Rear
BEARINGS
High quality TPI stainless steel bearings (doesn't rust or corrode)
Sealed Cartridge Units with 1x Contact Seal (outer facing seal interfaces with ball bearings to resist water penetration),
and 1x non-contact seal (no interface between ball bearings increases rolling speed)
Precision engineered: high roundness with low friction surface
Aqua Grease: repels water & allows your bearing(s) to spin smoothly long term.
SPOKES & NIPPLES
Extremely Aerodynamic Pillar Wing 20 Spoke
Pillar Patented Cold Forge Technology. Up to 30% lighter without compromising on strength.
2-cross front / 3-cross rear
Alloy double square head nipples
WARRANTY / CRASH REPLACEMENT
3 Year Warranty
Lifetime Crash Replacement for Carbon Models
50% Crash replacement for alloy models.
IN THE BOX
Tubeless Valves (x2)
Spare Nipples
Weight Limit: The upper combined weight limit (bike weight + rider weight + luggage) for these wheels is 130kg. If a rider is in excess of 90kg, we recommend regular wheel checks from an experienced bike mechanic.
The SILT Race Academy was created as a programme to support riders that inspire, encourage & promote all things MTB.
